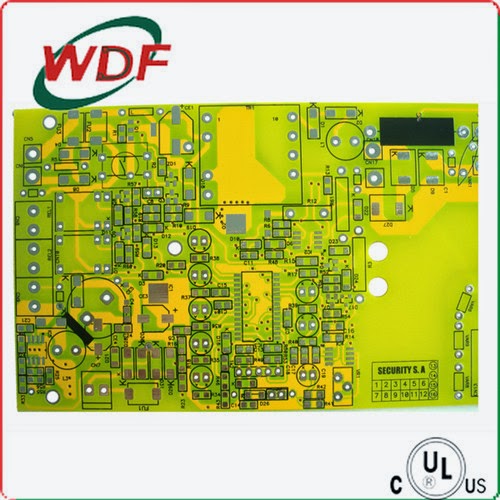

PCB drilling

Holes through a PCB are typically drilled with small-diameter drill bits made of solid coated tungsten carbide. Coated tungsten carbide is recommended since many board materials are very abrasive and drilling must be high RPM and high feed to be cost effective. Drill bits must also remain sharp so as not to mar or tear the traces. Drilling with high-speed-steel is simply not feasible since the drill bits will dull quickly and thus tear the copper and ruin the boards. The drilling is performed by automated drilling machines with placement controlled by a drill tape or drill file. These computer-generated files are also called numerically controlled drill (NCD) files or "Excellon files". The drill file describes the location and size of each drilled hole.

Holes may be made conductive, by electroplating or inserting metal eyelets (hollow), to electrically and thermally connect board layers. Some conductive holes are intended for the insertion of through-hole-component leads. Others, typically smaller and used to connect board layers, are called vias.

When very small vias are required, drilling with mechanical bits is costly because of high rates of wear and breakage. In this case, the vias may be laser drilled—evaporated by lasers. Laser-drilled vias typically have an inferior surface finish inside the hole. These holes are called micro vias.

It is also possible with controlled-depth drilling, laser drilling, or by pre-drilling the individual sheets of the PCB before lamination, to produce holes that connect only some of the copper layers, rather than passing through the entire board. These holes are called blind vias when they connect an internal copper layer to an outer layer, or buried vias when they connect two or more internal copper layers and no outer layers.

The hole walls for boards with two or more layers can be made conductive and then electroplated with copper to form plated-through holes. These holes electrically connect the conducting layers of the PCB. For multi-layer boards, those with three layers or more, drilling typically produces a smear of the high temperature decomposition products of bonding agent in the laminate system. Before the holes can be plated through, this smear must be removed by a chemical de-smear process, or by plasma-etch. The de-smear process ensures that a good connection is made to the copper layers when the hole is plated through. On high reliability boards a process called etch-back is performed chemically with a potassium permanganate based etchant or plasma. The etch-back removes resin and the glass fibers so that the copper layers extend into the hole and as the hole is plated become integral with the deposited copper.

If you need expert PCB services, feel free to contact us at wonderful02@wonderfulpcb.com

Some points should be noticed for etching

Reduce erosion and protrusion along the side to improve the etching factor. Produce sudden lateral erosion along. Printed in the etching solution is usually longer, (or use the old vacillating etching) the more serious side etch. Lateral erosion seriously affect the accuracy of printed conductors, would severely undercut the production of fine wires become impossible. When the lateral erosion and sudden decreases along the etching coefficient is increased, a high etching coefficient indicates the ability to maintain the thin wire, so close to the wire after etching artwork size. Plating etching resist either tin - lead alloy, tin, tin - nickel alloy or nickel, can cause sudden excessive wire along a short circuit. Because projecting along easily broken down, between two points of an electrical wire bridge.

Board and the board to improve the consistency between the etch rate. Board in a continuous etching, the etching rate is more consistent, more uniform etching of the board can be obtained. To meet this requirement, must ensure that the etching solution in the whole process of etching remain etched in the best condition. This requires selection easy to regenerate and compensation, the etching rate of the etching solution is easy to control. Used to provide constant operating conditions and parameters of the various solutions can be automatically controlled processes and equipment. By controlling the amount of dissolved copper, PH value of the solution concentration, temperature, solution flow rate uniformity (spray nozzle and a nozzle system or swing) or the like.

Improve the safe handling and etching thin copper foil and the ability of the etching thin laminate multilayer thin laminate inner layer so when the board is easy to wound on rollers and transfer wheel and cause waste. Therefore, the etching of the inner plate device must guarantee smooth, reliably handle a thin laminate. Many equipment manufacturers in the etching machine gears or rollers attached to prevent the occurrence of such phenomena. A better approach is to use an additional Teflon coated vacillating envelope sent as a thin plate supports. For thin foil (e.g., 1/2 or 1/4 ounce) etching, must guarantee not to be scratched or scratched. Stand like a thin copper foil etching 1 ounce copper on the mechanical drawbacks, sometimes more intense vibrations are likely to scratch the foil.

For more details and technical supports, please feel free to contact us.

What are Aluminum PCBs

Also known as metal base PCBs, aluminum based PCBs comprise metal based laminates that are covered by copper foil circuit layers. They are constructed utilizing alloy plates, which consist of a combination of Aluminum, Magnesium, and Silumin (Al-Mg-Si). These PCBs are known for their beneficial features such as electrical insulation, good thermal potential, and high machining performance.

Aluminum PCBs differ slightly from general PCBs. The structure of this PCB comprises:

Ø Base Layer: This layer consists of an aluminum alloy substrate. The use of aluminum makes this PCB an excellent choice for PTH technology. Holes can be cut, punched, or drilled to the requisite sizes.

Ø Insulation Layer: While the base layer is certainly important, the thermal insulation layer is a critical component of this PCB. It consists of a special ceramic polymer, which has excellent viscoelastic properties and thermal resistance. The insulation layer also protects the PCB from thermal and mechanical stresses.

Ø Circuit Layer: This layer comprises the copper foil mentioned earlier. Generally, PCB manufacturers utilize thick copper foils, which can range from 1oz to 10oz.

There are certain materials and processes that can be used to augment the performance of the PCB. These include gold plated HAL, lead free RoHS assembly processes, immersion gold silkscreen, and OSP anti-oxidation processes.

While aluminum PCBs consist of the same width and thickness as FR4 PCBs, the alloy plate allows the PCB to increase its conductivity to 2.0. Also, it can carry higher currents and withstand up to 4,500 volts of electricity.

If you need expert PCB assembly service, feel free to contact wonderful02@wonderfulpcb.com.

PCBA Industry News

1.Drilling and electroplating
If production is a multilayer PCB, and containing buried hole or blind hole, each layer board must be bored with first plating before bonding. If you don't pass this step, then can't connect each other.
After by machine equipment according to the requirements of drilling borehole Kong Bi inside must go Through electroplating (Plated Through Hole technology, Plated - Through - Hole technology, PTH).After Kong Bi internal make metal processing, can make the internal lines of each layer can be connected to each other. Before starting the electroplating, must first clear hole of sundry. This is because the resin epoxy compound after heating will produce some chemical change, and it can cover internal PCB layer, so need to clear out. Remove and electroplating movements will be completed in the chemical process.

2. Multilayer PCB pressing
each single layer must be pressing to make sandwich plate. Pressing action including adding insulation between the layers, and fastened to each other. If there is through several layers of guide hole, then each layer must be repeated. A multilayer wiring on the outside of the two sides, is often only after a multilayer pressing processing.

3. Treatment resistance welding layer, surface screen printing and gold finger plating
Next resistance welding paint coverage on the outermost wiring, so the wiring will not come into contact with the outside plating parts. Screen printing surface is printed on it, to mark the location of the various parts, it will not be able to cover at any wiring or gold finger, otherwise may reduce solder ability or the stability of the current connection. Gold finger parts usually gold plating, which, when inserted into the expansion slot to ensure high quality of the current connection.

4. Test
to test whether there is a short circuit or open rigid PCB can use optical or electronic means testing. Optical methods using scanning to find out the defects of each layer, electronic testing is usually with fly needle detector (Flying Probe) to check all the connections. Electronic testing in search of short circuit or open circuit is precise, but the optical test cans more easily detected incorrect gaps between the conductors.
